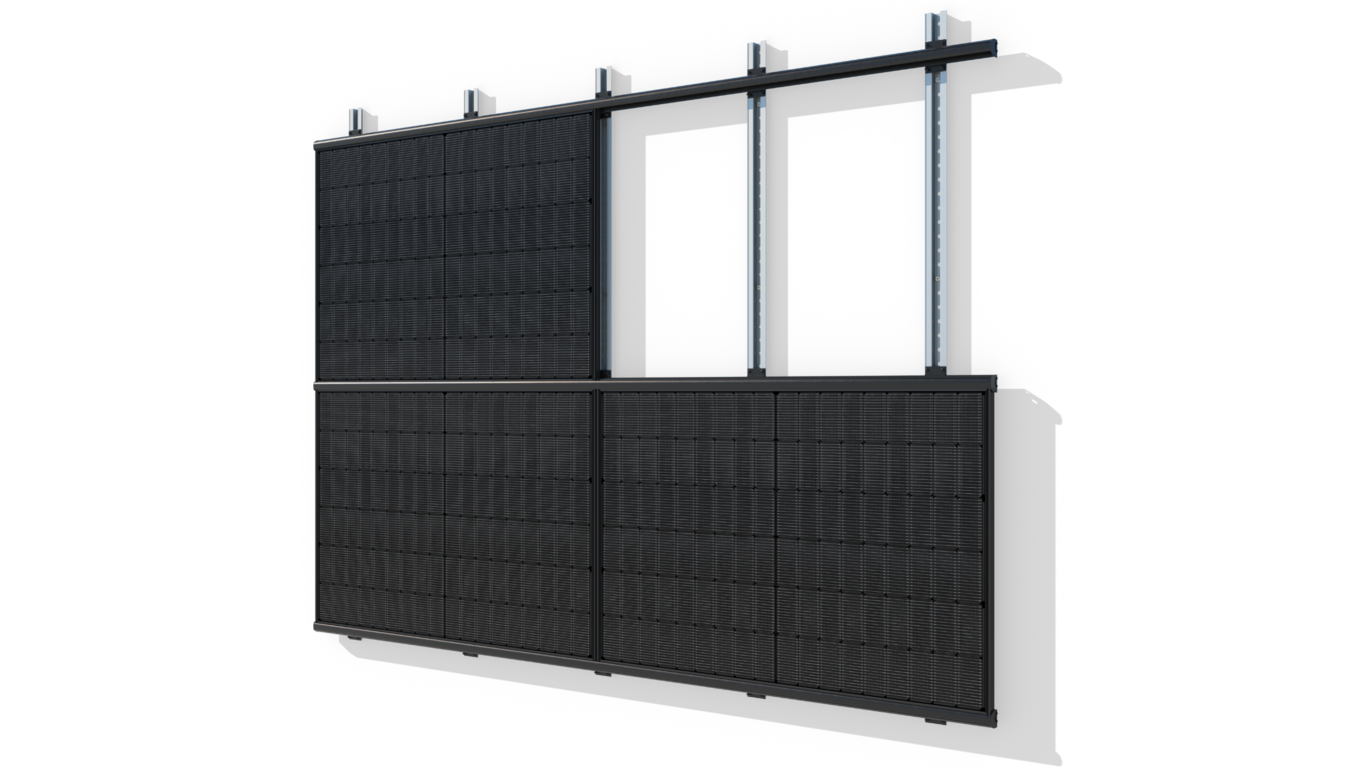

IBC WallFix
The system for every wall
The new IBC WallFix is the intelligent solution for solar energy generation on a buildings facade. Flexible, safe and easy to install on practically any wall - whether in the commercial and industrial sector or on your own home.

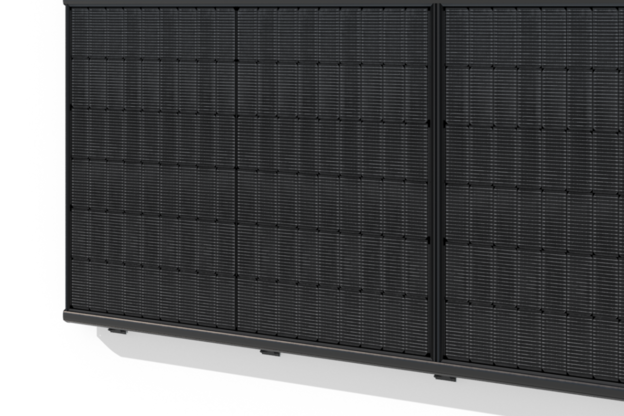

Module
Approved for the wall.
Facade modules have to withstand higher wind and suction forces as they are mounted parallel to the wall. They must also fulfil higher fire protection requirements than standard modules. As PV modules on the façade are categorised as part of the building envelope and therefore as a construction product, they require a general building authority approval (abZ). And last but not least, the appearance of the facade is crucial, so modules must integrate harmoniously into the building.

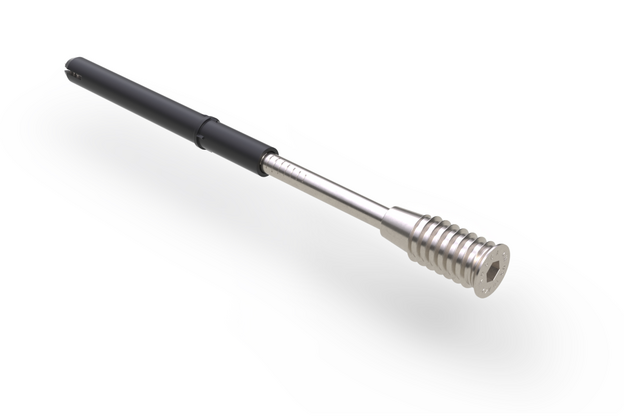

Spacer screw RDS-CA
Easy to install and flexible.
The screw system is a certified passive house component and is approved by the building authorities. The screws fulfil all fire protection requirements for rear-ventilated rainscreen cladding. Optimum load transfer through truss screw connection.

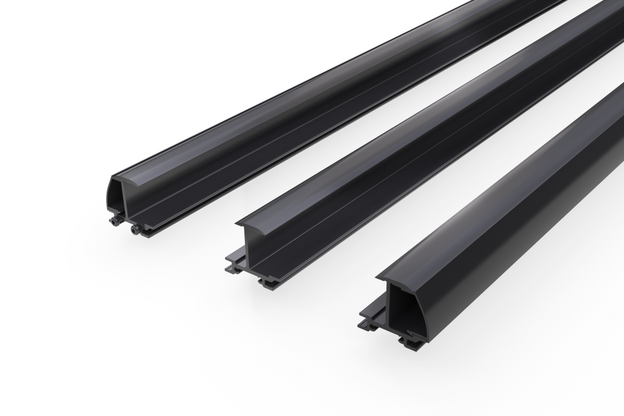

Insertion rail
It's the look that counts.
The high-quality anodised components are quick and easy to install. The use of different rail widths - depending on the module frame height - not only guarantees cost-optimised use of materials, but above all an optimum, secure fit of the module in the rail. The modules are inserted directly into the profile rails. Module clamps are not required. This saves time and reduces installation costs.
More energy from unused surfaces.

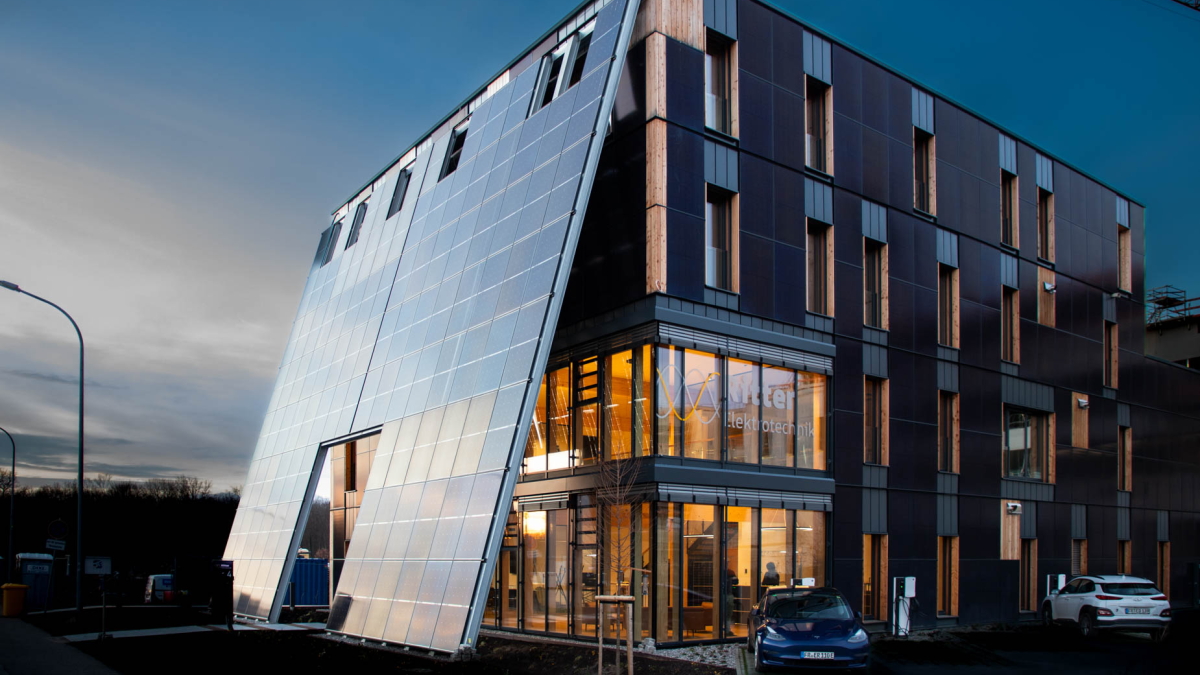

With IBC WallFix, every wall becomes an energy source. Vertical module installation not only provides additional energy yields, but is also a real eye-catcher - especially in commercial areas or prestigious buildings. What's more, a facade PV system is often even more profitable than a rooftop system when the sun's rays are flat, such as in the mornings, evenings or during the winter months.

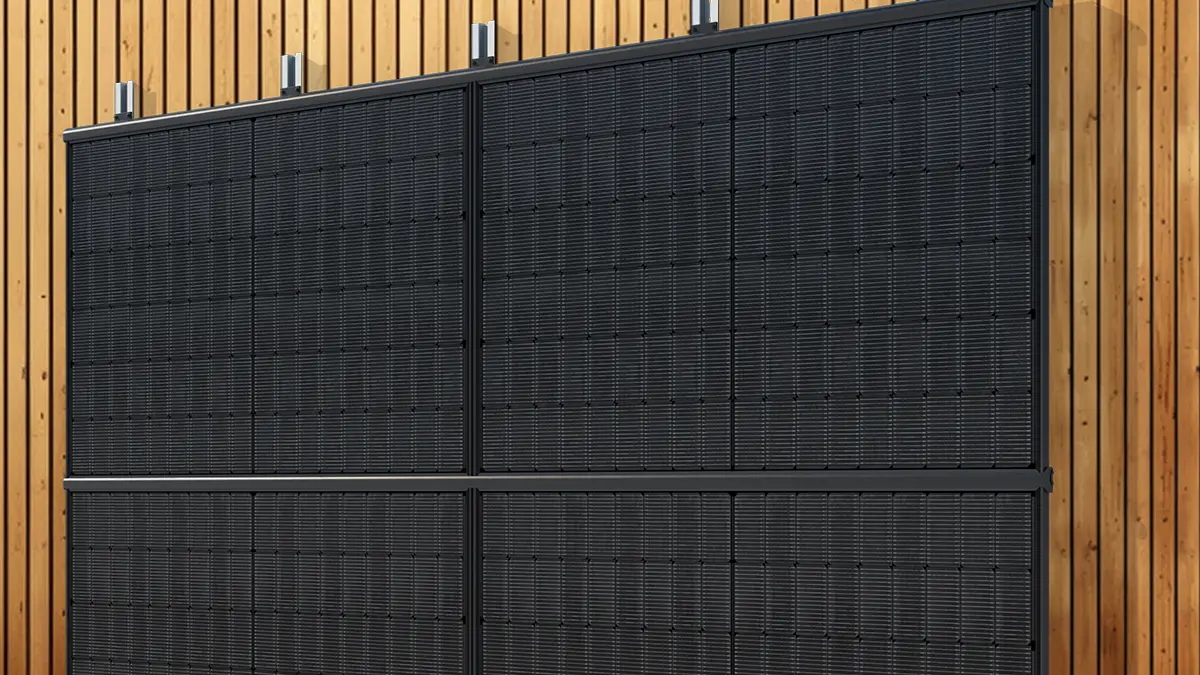

Easy to mount on practically any wall.
Whether brick, concrete or trapezoidal sheet metal - IBC WallFix enables the secure and approved attachment of PV modules to a wide variety of facade substrates. The connection components guarantee a permanently reliable installation, and the WallFix will have all the necessary certifications (abZ / aBG) by the end of 2025. Approval in individual cases (ZiE) or project-related type approval (vBG) is not required.
The ideal addition for facades.
Universal.
Suitable for almost all insulated and non-insulated façade substrates such as concrete, masonry and trapezoidal sheet metal.
Safe.
All components calculated in combination. Simulations and tests by K.I.T. (Karlsruhe Institute of Technology) available and a general building authority approval is being sought.
High quality.
Long service life thanks to the use of optimised materials such as aluminium and stainless steel.
Guaranteed.
Maximum safety with a 15-year combined warranty.
Aesthetic.
High-quality anodised components ensure an elegant and sophisticated design.
Economical.
The system is specially optimised for façades and ensures a consistent yield throughout the year.
Engineered in Germany.
The entire IBC WallFix system was designed and tested in Germany.
Fast.
Simple assembly system with few tools and components.
By the way: IBC SOLAR is part of research
We are a project partner in the Solar Envelope Center, a Fraunhofer ISE research project for the solarisation of the building envelope in new and existing buildings. The close cooperation with project partners from architecture, project development and AI research guarantees expertise in all areas of facade solarisation. Whether preliminary project planning, construction process integration, system construction or grid integration. We accompany you all the way to your own facade PV system.
PV Manager. Plan faster.
Calculate more precisely.
With our PV Manager software, you benefit in several ways when planning your systems: All our mounting systems are already integrated into the programme. Thanks to automatic updates, the software is always up to date - including clear graphics and structured documents. Your complete system planning results in a parts list that you can transfer directly to our online shop. This means you have the material you need in no time at all.
Advantages for installers:
- Fast and intuitive planning of PV systems
- Automatic calculation of the required components
- Time savings thanks to direct transfer of parts lists to the shop
- Static calculations and ballasting plans
- Complete integration of all IBC SOLAR mounting systems
The 15 year combination warranty - as strong as our mounting systems.
Your customers want security - you want fewer discussions. This is exactly what our combination warranty offers: 15 years of protection on IBC SOLAR mounting systems and modules in combination.
For your customers this means:
- 5 years more warranty than when purchasing the components individually
- One contact, one guarantor, namely IBC SOLAR
- An uncomplicated settlement in the event of damage
Whether it's a material weakness in the mounting or a loss of power in the module - in the event of a claim, we settle it directly and ensure a quick solution. Offer your customers not only quality installation, but also a convincing plus in safety.
Find out more
And there's more - get to know our other mounting solutions.
As an installer, you benefit from the fact that you will not only find the right mounting system for a specific project with us, but are also optimally equipped for all roof types. Whether flat roof, pitched roof or facade - our systems are designed for fast installation, tested safety and long-term reliability.
This allows you to react flexibly to your customers' requirements and realise every project with a solution from a single source. Discover our other mounting systems here:

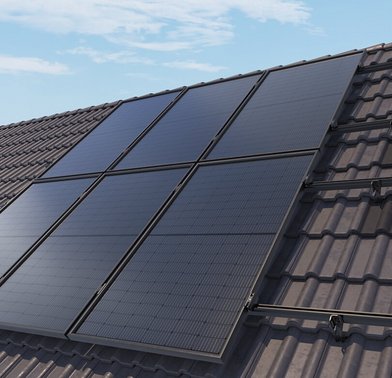

IBC TopFix
Pitched roof system
Whether tile, trapezoidal sheet or sheet metal seam - the universal solution for every pitched roof.

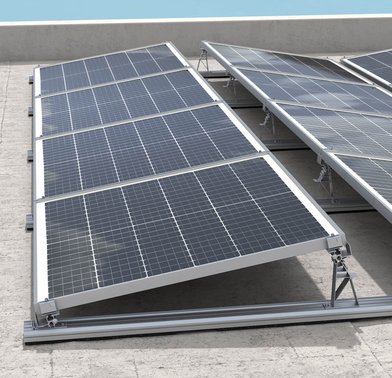

IBC AeroFix
