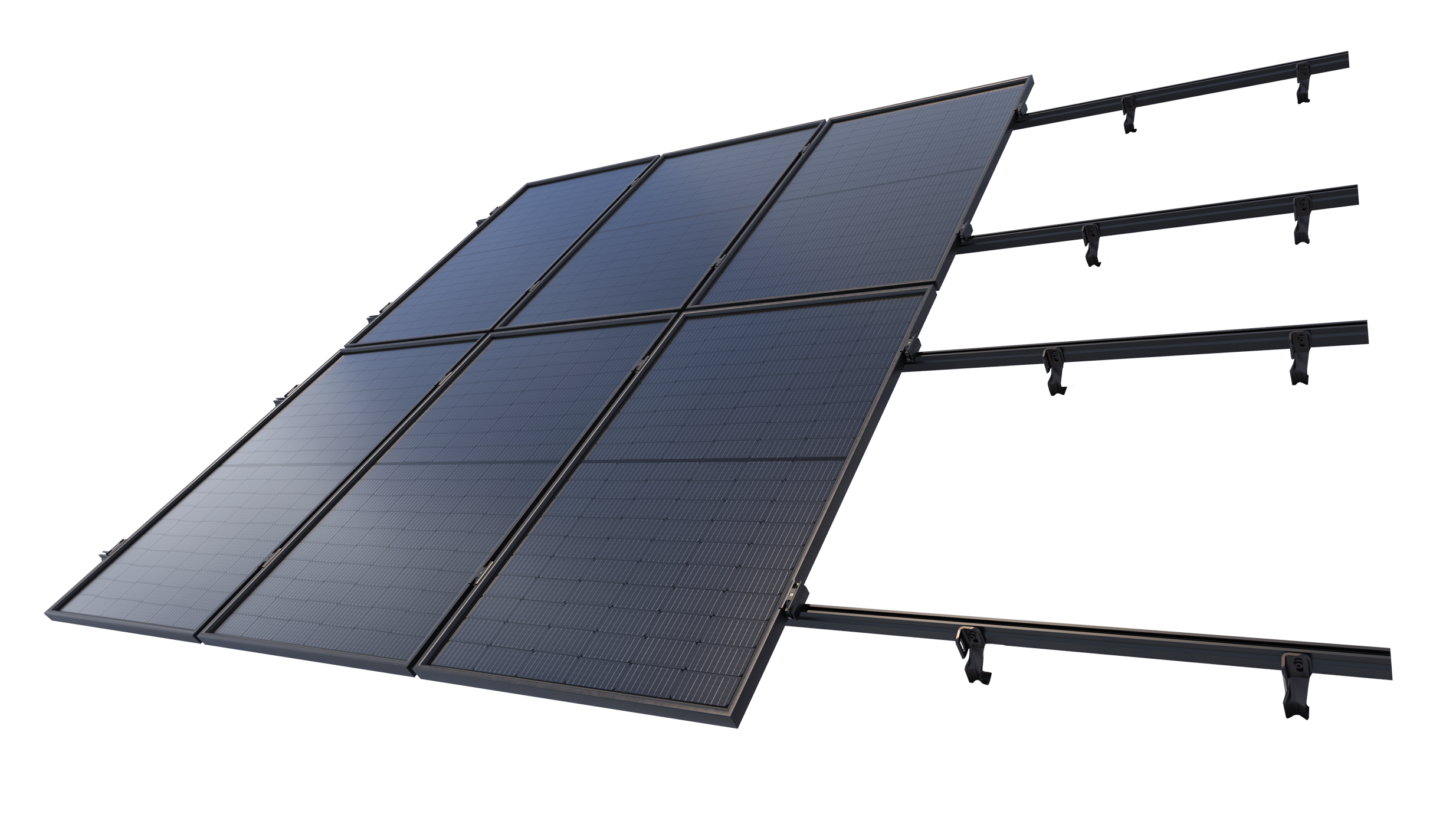

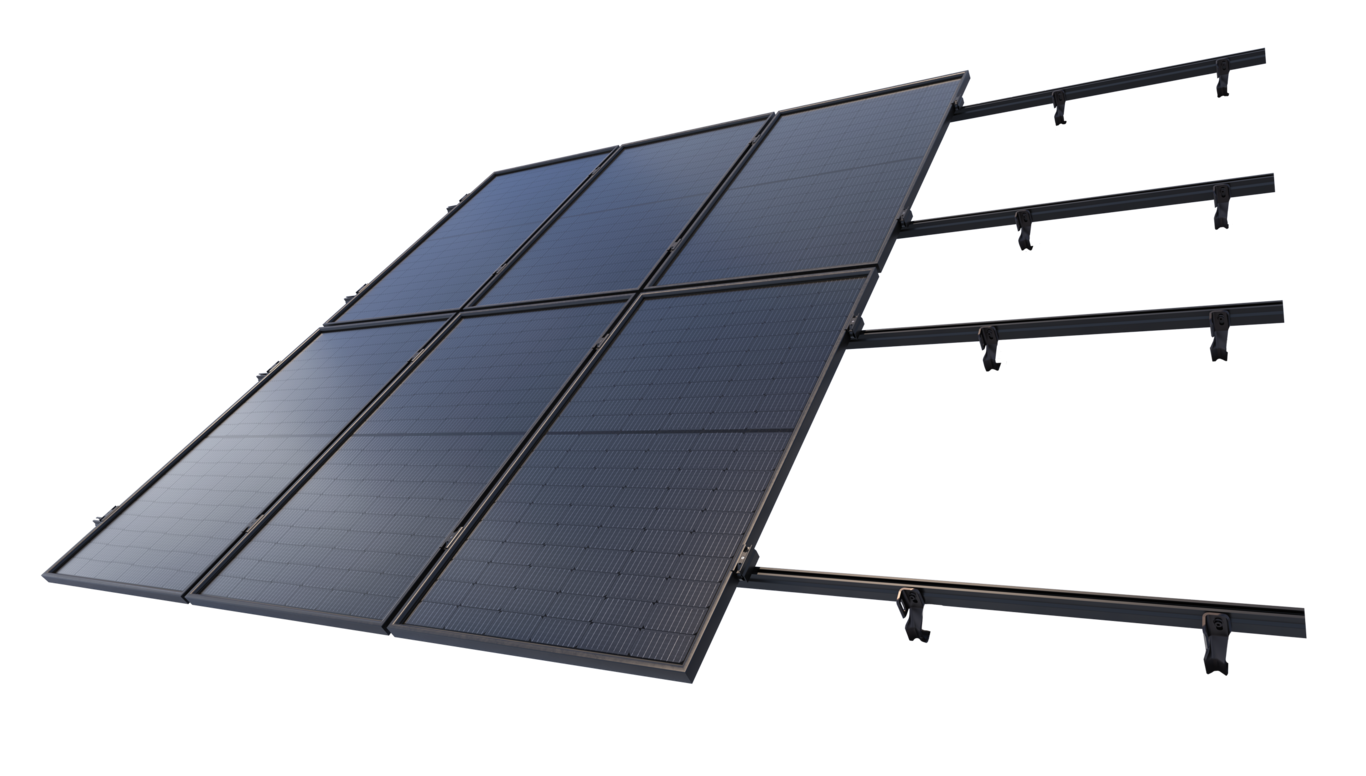

IBC TopFix 200

The all-rounder for pitched roofs

The IBC TopFix 200 has been specially developed for universal use on almost any pitched roof. It is particularly suitable for use on roofs with roof tiles, trapezoidal sheets, corrugated eternit and sheet metal seam covers.

Moulded sheet metal tiles
Module clamp G3
Center clamp G5
Moulded sheet metal tiles

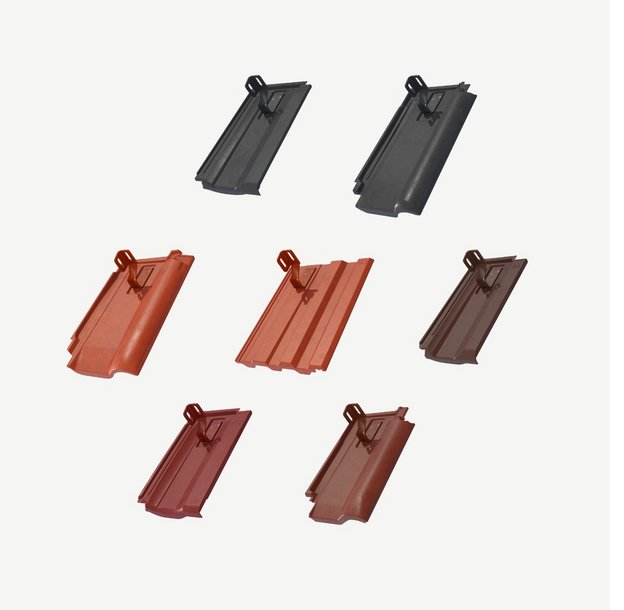

Moulded sheet metal tile IBC Mammut Form S+

Fast. Safe. Stable.

The aesthetically pleasing moulded sheet metal tiles in the Mammut Form S+ range offer flexible and varied installation of the modules on pitched roofs. They are designed for quick and particularly easy installation - even with above-rafter insulation. Their enormous stability enables system installation with fewer fixing points in the roof. This saves material, time and money.

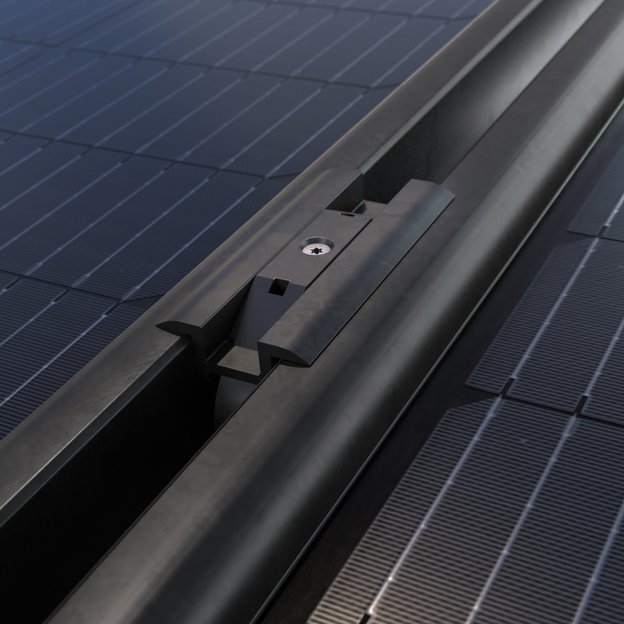

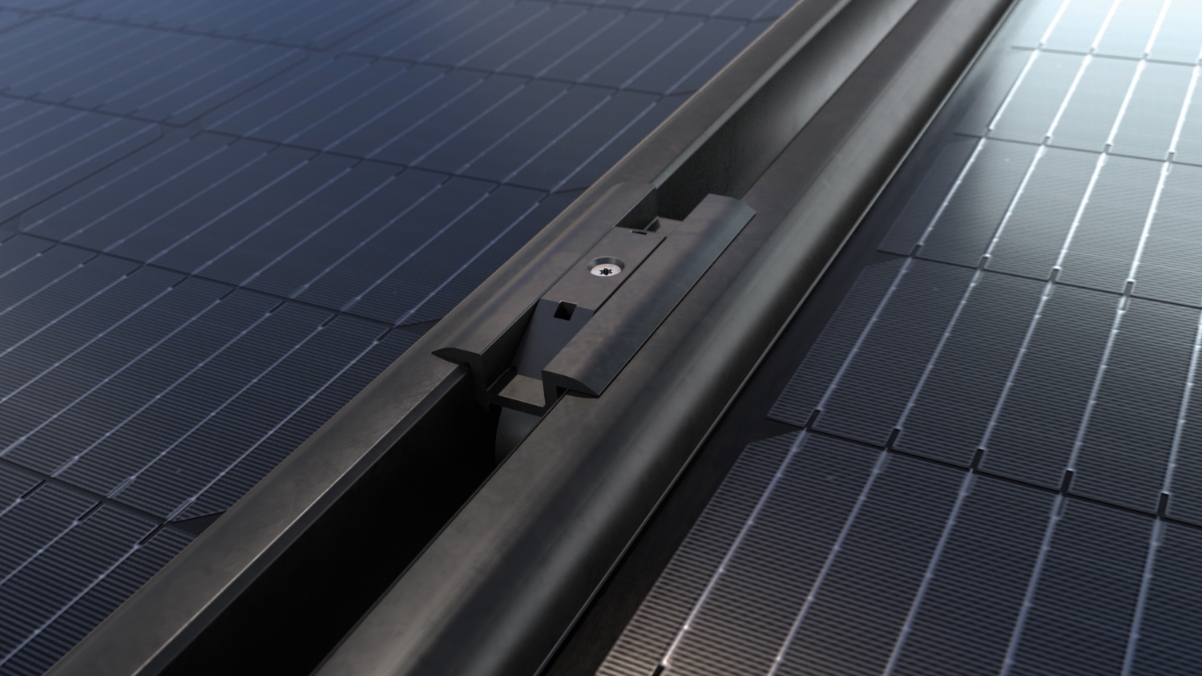

Module clamp G3

Module clamps for every application

Simple. Stable. Flexible.

The G3 module clamp combines ease of installation with stability and safety. An integrated plastic bracket pretensions the connection between the thread and the sliding block in such a way that there is no need for tedious threading of the sliding block. The pre-assembled clamp is simply inserted into the groove channel. The same applies to the G3 external clamp for a frame height of 30 mm. If you want to be flexible, choose the G3 Vario external clamp. The height of 30 to 40 mm can be adjusted to the module frame height with millimetre precision using locking wedges and sliders.

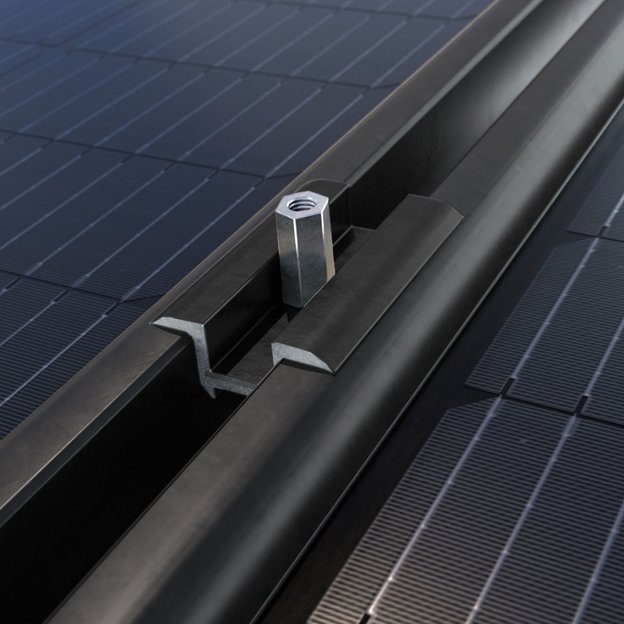

Center clamp G5

Center clamp G5

The clever twist.

The innovative G5 center clamp impresses with its simplicity - which is evident both during installation and in the price. Thanks to its patent-pending design with an inverted screw, spring and long nut, it can be installed without errors in just a few simple steps. A separate external clamp is no longer required thanks to the addition of an external clamp adapter. This adapter can cover several module frame heights of 30 - 40 mm.

Quick assembly.

Thanks to its perfectly matched individual parts, the IBC TopFix 200 fulfils the highest quality requirements and guarantees uncompromising safety. Thanks to the pre-assembled parts, the system can be installed in no time at all and you benefit from low installation costs. The use of high-quality materials ensures a long service life and is the basis for constant performance.

Maximal flexibel.

With various clamps, rails, roof hooks and moulded sheet metal tiles, the TopFix 200 system is suitable for all pitched roofs and a wide variety of coverings. The necessary components are put together according to requirements and always fit together perfectly. This eliminates the need for time-consuming storage of different components. Our many years of experience, numerous suggestions from industry associations and the requirements of installers have been incorporated into the development of the system, and the TopFix 200 is also being continuously developed and improved.

The optimum solution for pitched roofs.

Fast.

Ready in a few simple steps thanks to pre-assembled individual parts.

Universal.

Suitable for almost all pitched roof shapes and roof coverings.

Modular.

Optimised solutions for all areas of application and customer requirements thanks to the modular principle.

Safe.

All components are calculated in combination. Tests by K.I.T. and a DIBT approval round off this optimally.

Reliable.

Extensive quality tests in the SUNLAB test laboratory prove optimum product quality.

Roof perfect.

No roof damage thanks to high-quality and sophisticated components.

High quality.

Long service life thanks to the use of optimised materials such as aluminium and stainless steel.

Guaranteed.

Maximum safety with a 15 year combined warranty.

PV Manager. Plan faster.
Calculate more precisely.

With our PV Manager software, you benefit in several ways when planning your systems: All our mounting systems are already integrated into the programme. Thanks to automatic updates, the software is always up to date - including clear graphics and structured documents. Your complete system planning results in a parts list that you can transfer directly to our online shop. This means you have the material you need in no time at all.

Advantages for installers:

  • Fast and intuitive planning of PV systems
  • Automatic calculation of the required components
  • Time savings thanks to direct transfer of parts lists to the shop
  • Static calculations and ballasting plans
  • Complete integration of all IBC SOLAR mounting systems


Learn more

The 15 year combination warranty - as strong as our mounting systems.

Your customers want security - you want fewer discussions. This is exactly what our combination warranty offers: 15 years of protection on IBC SOLAR mounting systems and modules in combination.

For your customers this means

  • 5 years more warranty than when purchasing the components individually
  • One contact, one guarantor, namely IBC SOLAR
  • An uncomplicated settlement in the event of damage

Whether material weakness in the mounting or loss of power in the module - in the event of damage, we settle it directly and ensure a quick solution. Offer your customers not only quality during installation, but also a convincing plus in safety.

Find out more

And there's more - get to know our other mounting solutions.

As an installer, you benefit from the fact that you will not only find the right mounting system for a specific project with us, but are also optimally equipped for all roof types. Whether flat roof, pitched roof or facade - our systems are designed for fast installation, tested safety and long-term reliability.

This allows you to react flexibly to your customers' requirements and realise every project with a solution from a single source. Discover our other mounting systems here:



IBC TopFix

Insertion system

The elegant solution for tiled roofs - roof-integrated look, simple installation, full rear ventilation.

IBC AeroFix

Flat roof system

Aerodynamic, economical, roof penetration-free - the flat roof system for professionals.

IBC WallFix

Facade system

Flexible, safe, simple, whether for private or commercial use - the smart PV solution for every facade.

IBC AeroFlat

Inclined flat roof system

Aerodynamic system for bitumen and foil roofs with a pitch of up to 30° and a height of several metres.

IBC AeroFix Latch

Fall protection

DEKRA-certified and EU type-examination certified - for safe maintenance work directly on the module array.
